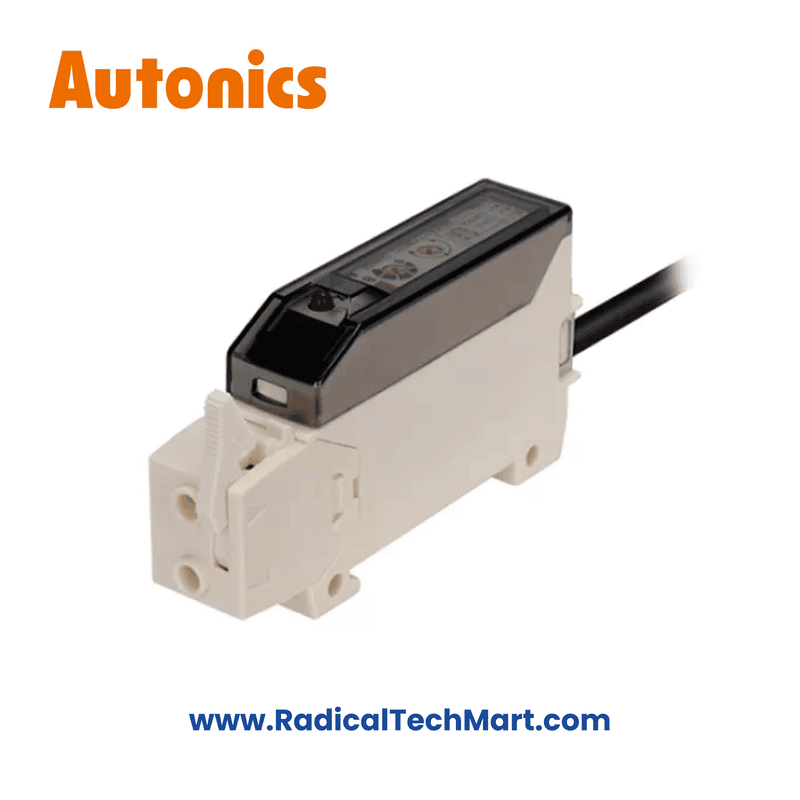

BF3RX-P Autonics Fiber Optic Sensor
Non-returnable
₹2,847.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model | BF3RX-P |
| Type | Built-in twin volume type |
| Light source | Red LED(660nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 40mA |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | PNP open collector |
| Sensitivity adjustment | Sensitivity adjuster(coarse adjustment, fine adjustment) |
| Environment Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment Ambient temperature | -10 to 50℃, storage: -25 to 70℃ |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Acrylonitrile butadiene styrene, Cover: Polycarbonate |
| Cable specification | Ø5mm, 4-wire, 2m (AWG24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm) |
| Accessories | Sensitivity adjuster driver, Mounting bracket, Bolts, Nuts |
| Weight | Approx. 90g |
